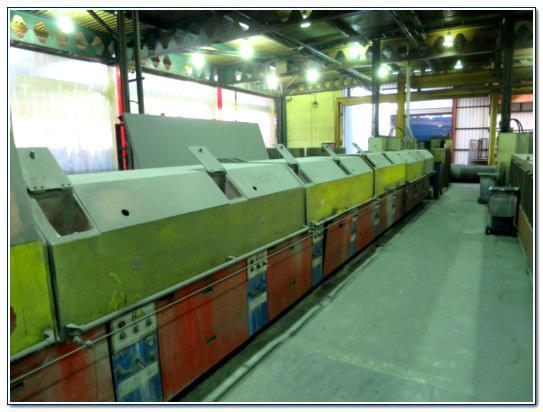

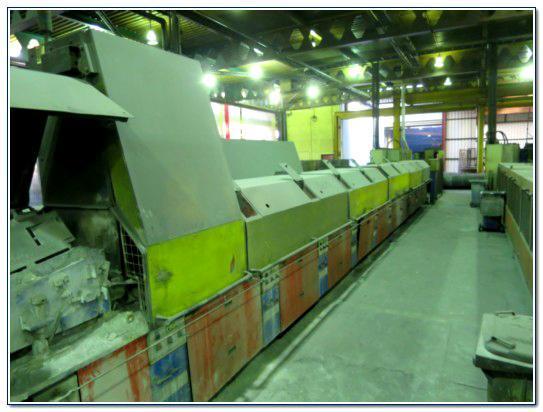

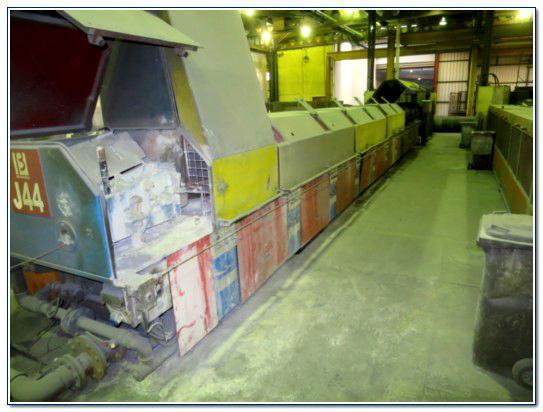

Bekaert 10 Block Wire Drawe Line W/Payoff & Spooler

Manufacturer
BEKAERT

Model
Jupiter C

Year
1999

Stock #
6223

Condition
Good

Specifications

Number of Blocks 10
Built in Elongation Yes
Angled Blocks Yes
Diameter of Blocks 18" (450mm)
Soap Box One Each Stand W/Die Holder
Dancer Arm One Each Stand

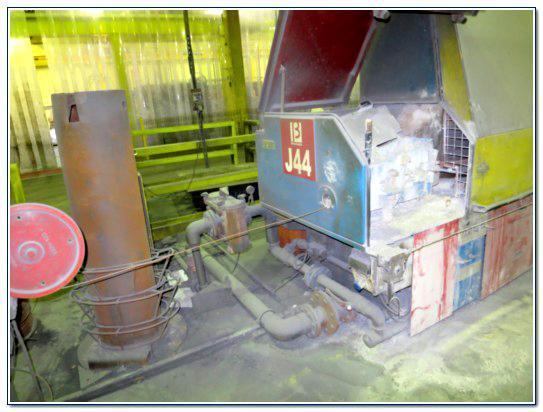

Inlet Wire Diameter .120" (3.07mm)
Finishing Wire Diameter 0.033"- .046" (.84 - 1.18mm)
Maximum Speed 3280 FPM (1000 MPM)
Cooling Internal Water Cooled Capstans & Dies
Capstan Water Pressure 40 I/Min @ Pressure of 100 kPa
Die Water Pressure 15 I/Min Per Die @ Pressure of 100 kPa
Dust Extraction Directly Behind the Drawing Dies 1 X 37.5 Cu Meters/H
Dust Extraction Entrance of Each Soap Box 1 X 37.5 Cu Meters/H
Dust Extraction Wire Straightener 2 x 90 Cu Meters/H

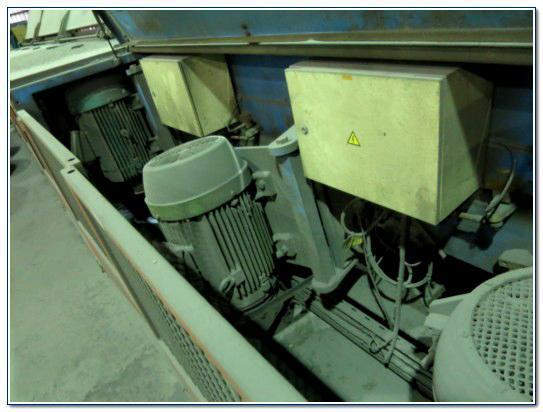

Motors Ind. AC Motor W/Frequency Control on Each Block
Motor Power 30 HP (22kW)
Power Supply 415V/50Hz
PLC Remote PLC

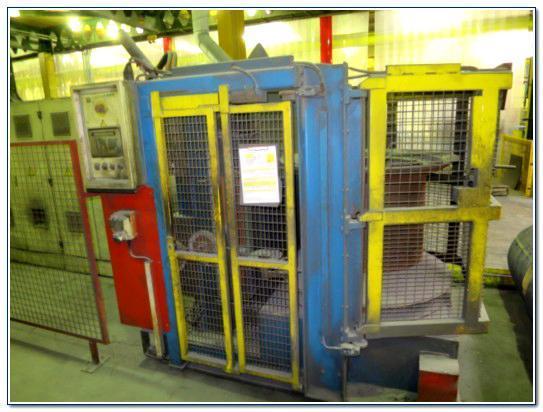

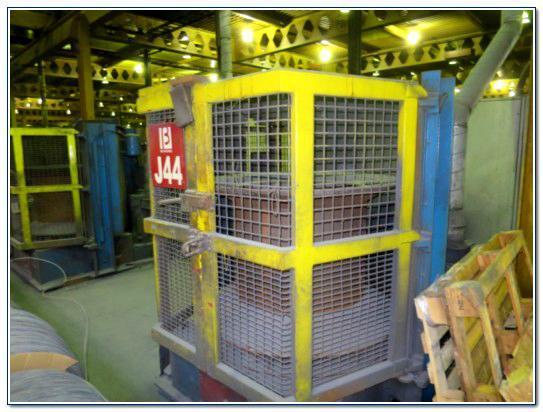

Spooler Model OBX
Type Conical Reel WS2000
Take-Up Speed 1800M/Min
Reel Dimension 47" (1200mm) Outside Dia X 31" (812mm) Core Dia
Take Up Pitch 1" (25mm)
Drive Motor Reel 64 HP (48.2 kW) DC / DC 1648/2350 RPM
Drive Motor Wire Guide 1 HP (0.75 kW) 2000 RPM W-Brak
Compressed Air Connection 6 Bar (85 PSI)

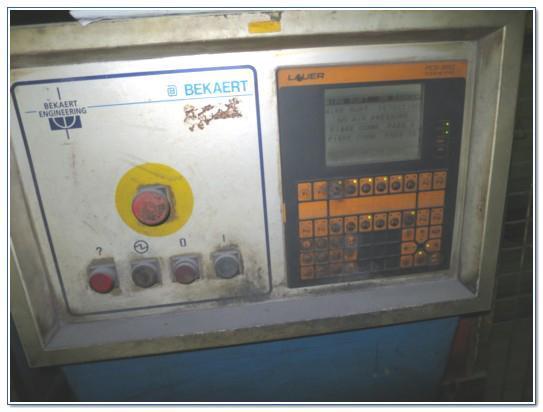

Controls Touch Panel PLC
Equipped With With Payoff And Spooler
