Used Equipment

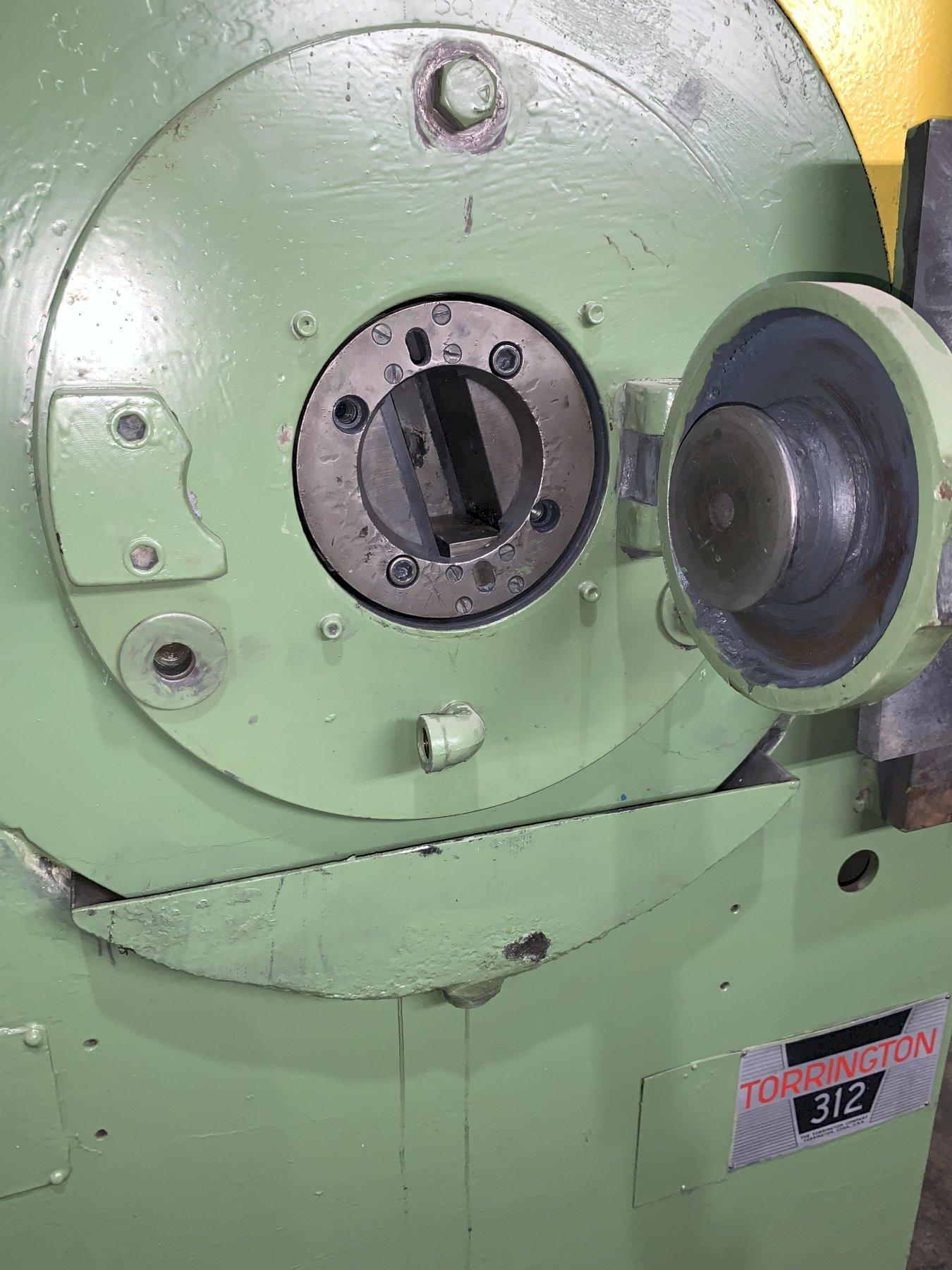

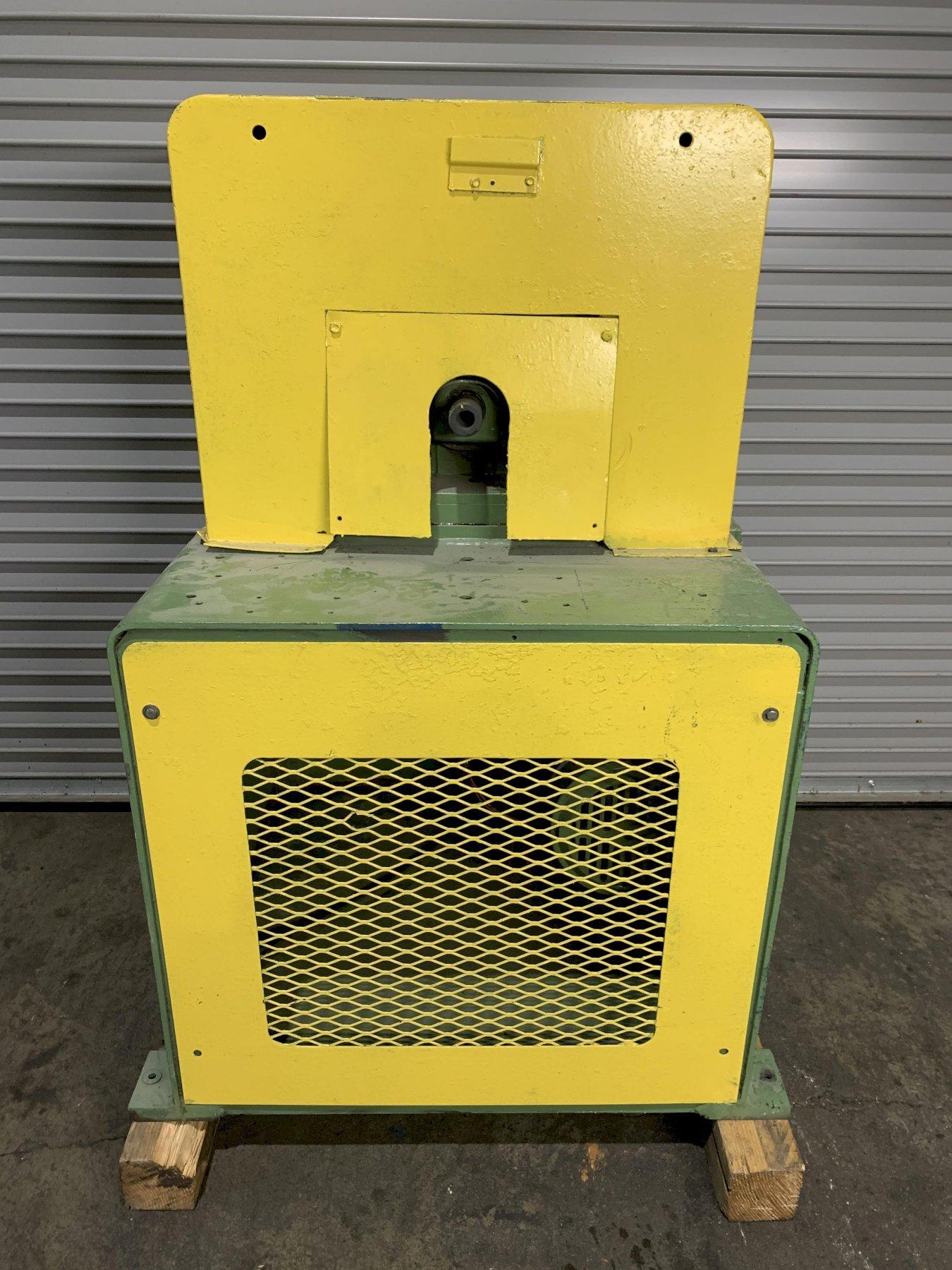

7/8" (22mm) Torrington Model 312 Rotary 2 Die Swaging Machine

Type
Swagers

Manufacturer
TORRINGTON

Model
312

Year
N/A

Stock #
8146

Condition
Used

Specifications

Capacity - Tubing 7/8" (22.2mm)
Capacity Solids 3/8" (9.5mm)
Die Size - Width 1.187" (30.1mm)
Die Size - height 1.175" (29.8mm)
Die Size - Length 2.500" (63.5mm)
Motor 460 Volts
Approx. Weight 2500 lbs
Approx. Floor Size 30 5/8" (777.9mm) W x 34 7/8" (885.8mm) L
Equipped With Machine is equipped with a water cooled head.

Machine used T-Type side plates.  Can only use special slotted hammers.
Machine uses narrower than standard dies and hammer.
Can easily be converted to standard dies and hammer,
