| Wire Diameter Range | 1.5 - 3.0mm (.059" - .118") |
| Maximum Coil Diameter | 24mm (.944") |
| Mac Coil Length | 180mm (7.08") |
| Feed Axis Minimum | .02mm |
| Feed Axis Max Speed | 90 m/min |
| Cam Axis Minimum Increment | .05 deg |
| Cam Axis Max Speed | 200 rpm |
| Slide Axis Minimum Increment | .001 |
| Slida Axis Max Speed | 200 rpm |
| Dimensions | 40" L x 6' W x 7' H |
| Approx. Weight | 1600 KG |

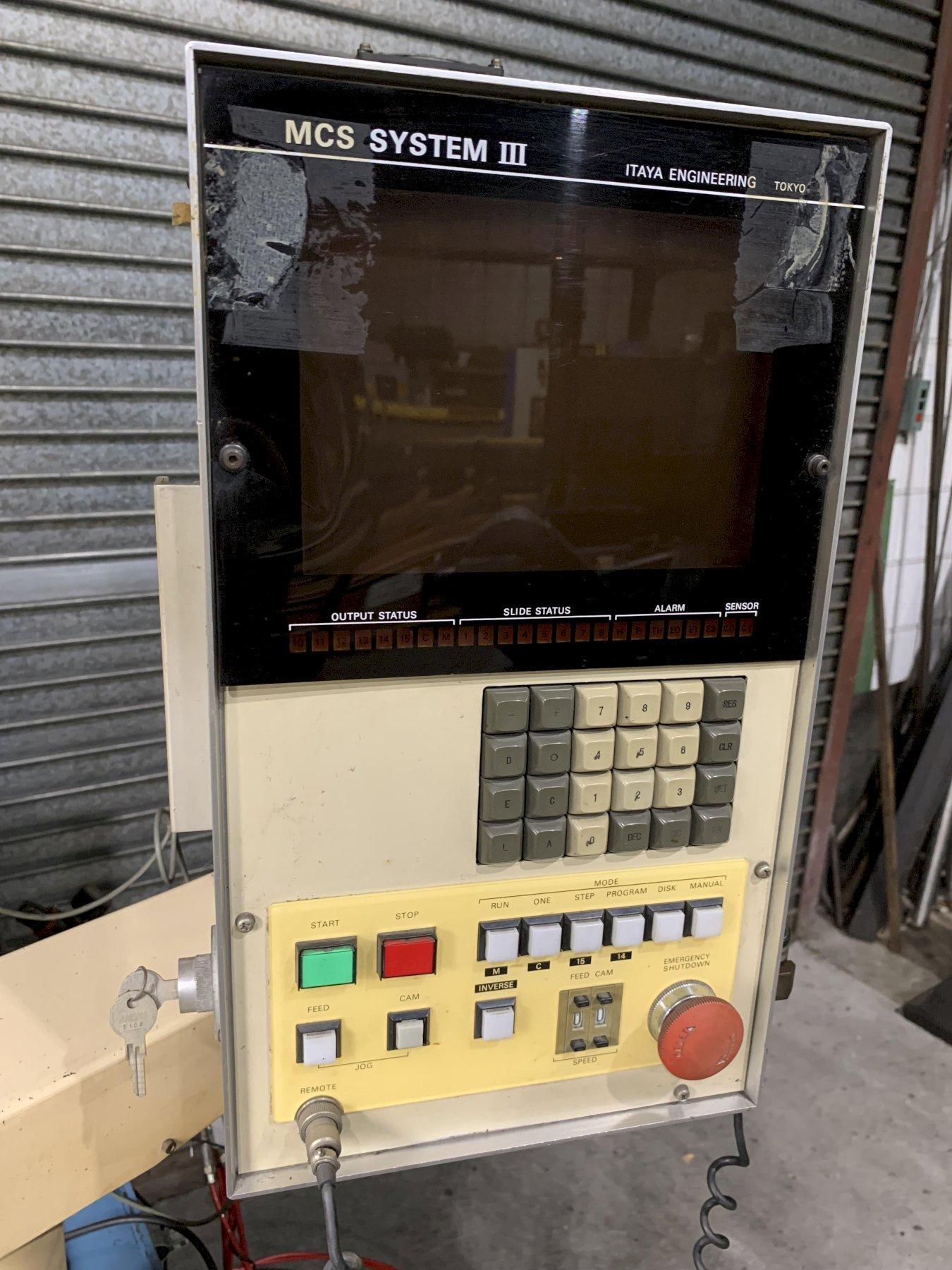

| Equipped With | MCS System III Control |
