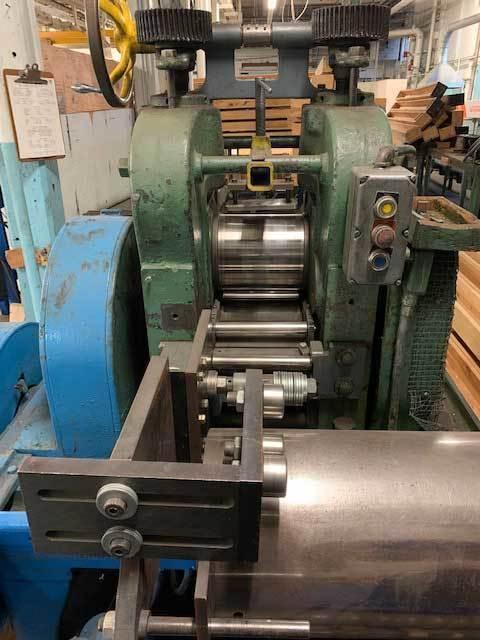

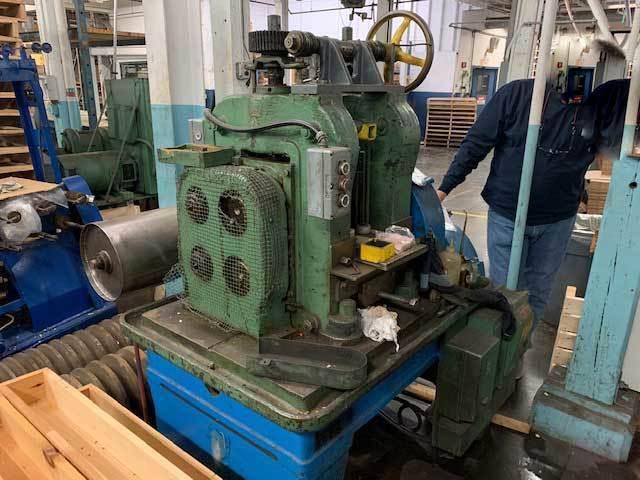

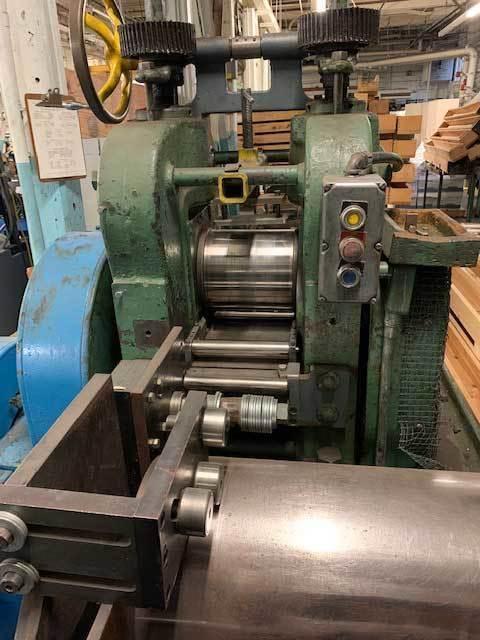

| Equipped With | TYPE..............................2 HIGH WIRE FLATTENING MILL MODEL.............................MODEL 084 ROLL DIAMETER.....................8" (203MM) ROLL WIDTH........................8" (203MM) ROLL BEARING TYPE.................ROLLER BEARINGS TYPE OF SCREWDOWN.................SINGLE HANDWHEEL NON-REVERSING DIRECTION OF TRAVEL...............RIGHT TO LEFT DRIVE MOTOR.......................10 HP, 208 VOLTS, 3PH, 60 HZ. DRIVE TRAIN.......................BELT DRIVE INTO HERRINGBONE GEAR WINDOW WIDTH......................10" (254MM) MILL STAND CROSS SECTION..........4" (101MM) x 7" (178MM) BOTTOM ROLL IS DRIVEN FROM THE MOTOR AND GEARBOX TOP ROLL IS DRIVEN FROM GEARS CONNECTED TO BOTTOM ROLL CAN BE USED FOR FLAT STRIP OR FLAT WIRE FOR FLAT WIRE MILL IS EQUIPPED WITH A 3 ROLL BENDER CASCADING THE WIRE AROUND A NON-DRIVEN 12" (305MM) DIA. X 24" (610MM) WIDE DRUM. TAKE-UP CAN BE REMOVED FOR FLAT STRIP ROLLING. STOP-START OPERATOR BUTTONS ON BOTH ENTRY AND EXIT SIDES OF THE MILL. **Temporary Specifications Subject to Revisions** **Physical Inspection To Verify Specifications Is Recommended** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATIONS BY PURCHASER** |
