| Weight | 7500 pounds |
| Threads Per Millimeter | 0.25 |
| Swing in Gap | 28 inches |
| Swing | 11 inches |
| Swing Over Cross Slide | 11.75 inches |

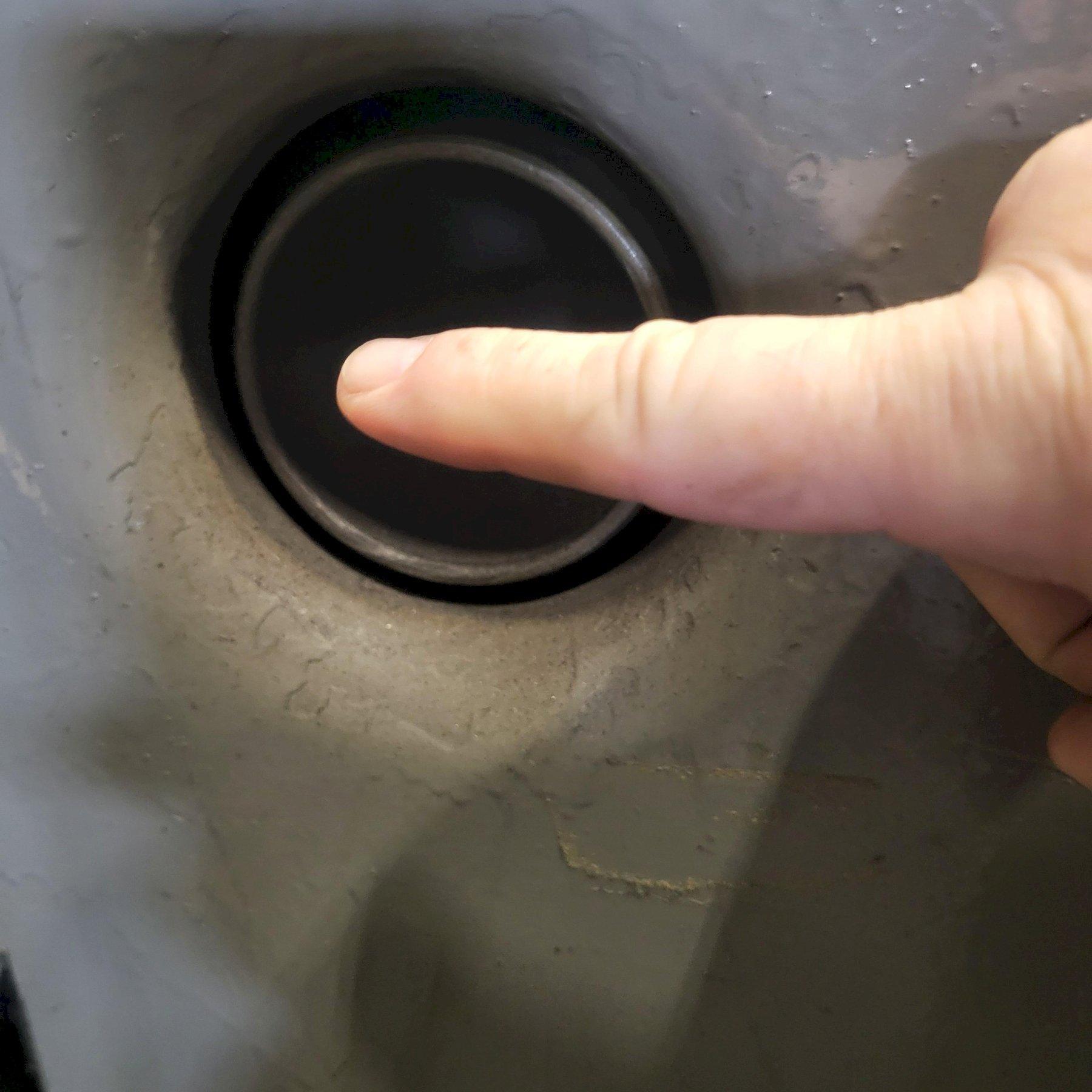

| Spindle Bore | 3.25 inches |
| Spindle Motor | 15 Hp |
| Spindle Speeds | 9 - 1600 RPM |
| Spindle Nose Data | D1-8 |
| Distance Between Centers | 60" |
| Longitudinal Feeds | 0.001 - 0.24 IPR - Cross (80) 0.00022-0.055 IPR |
| Threads | Inch 1/8 - 72 TPI - Metric (48) 0.25 -124mm |
| Equipped With | Equipped with: 2 Axis Digital Readout, Aloris Quick Change Tool Post, 6 Jaw Chuck, Faceplate, Centers ( For Tailstock ) Electrical Required: 220V/3/60 |
