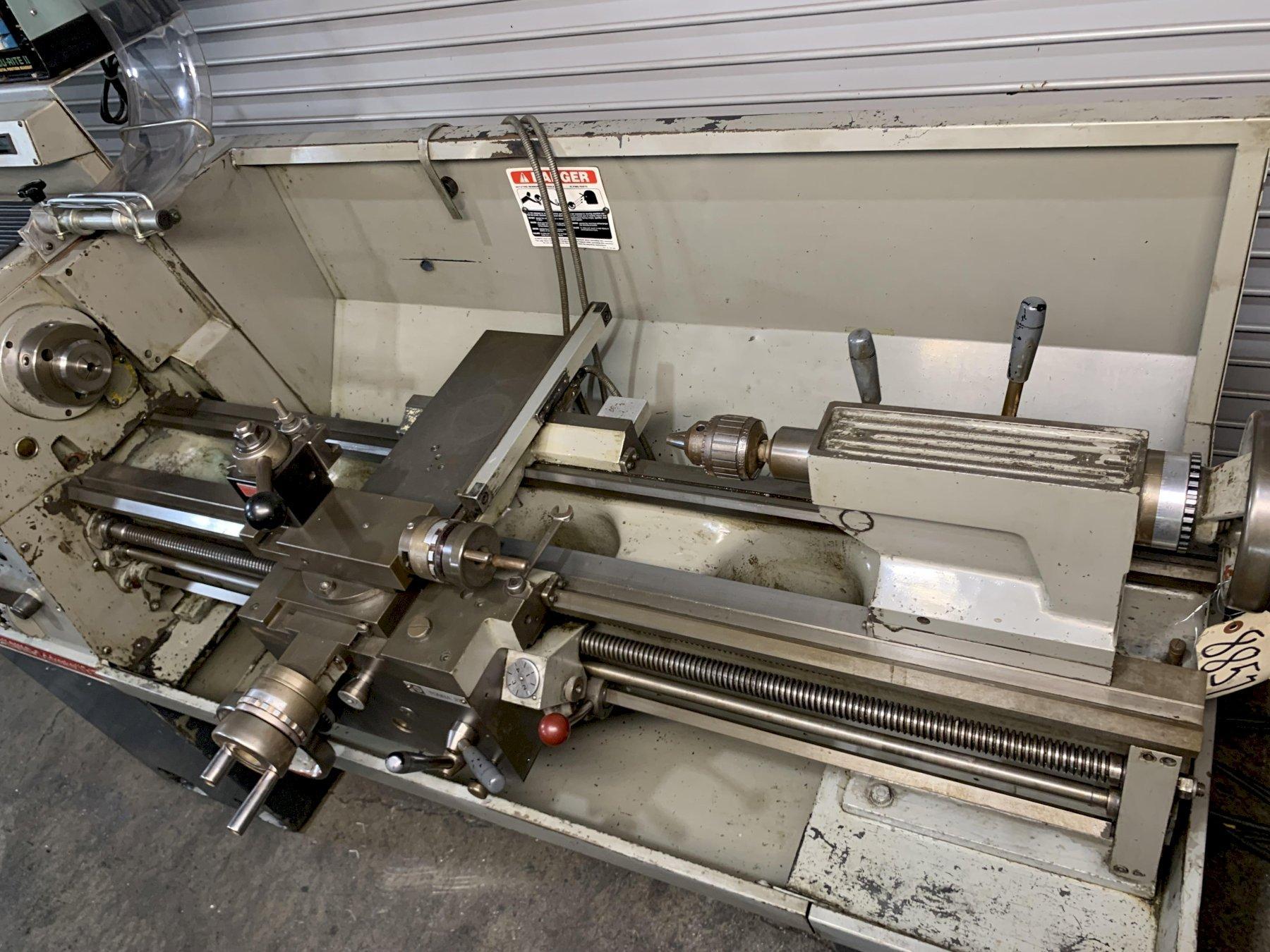

Swing Over Bed: 13"
Swing Over Cross Slide: 8-1/4"
Bar Capacity Thru Spindle: 1-5/8"
Distance Between Centers: 40"

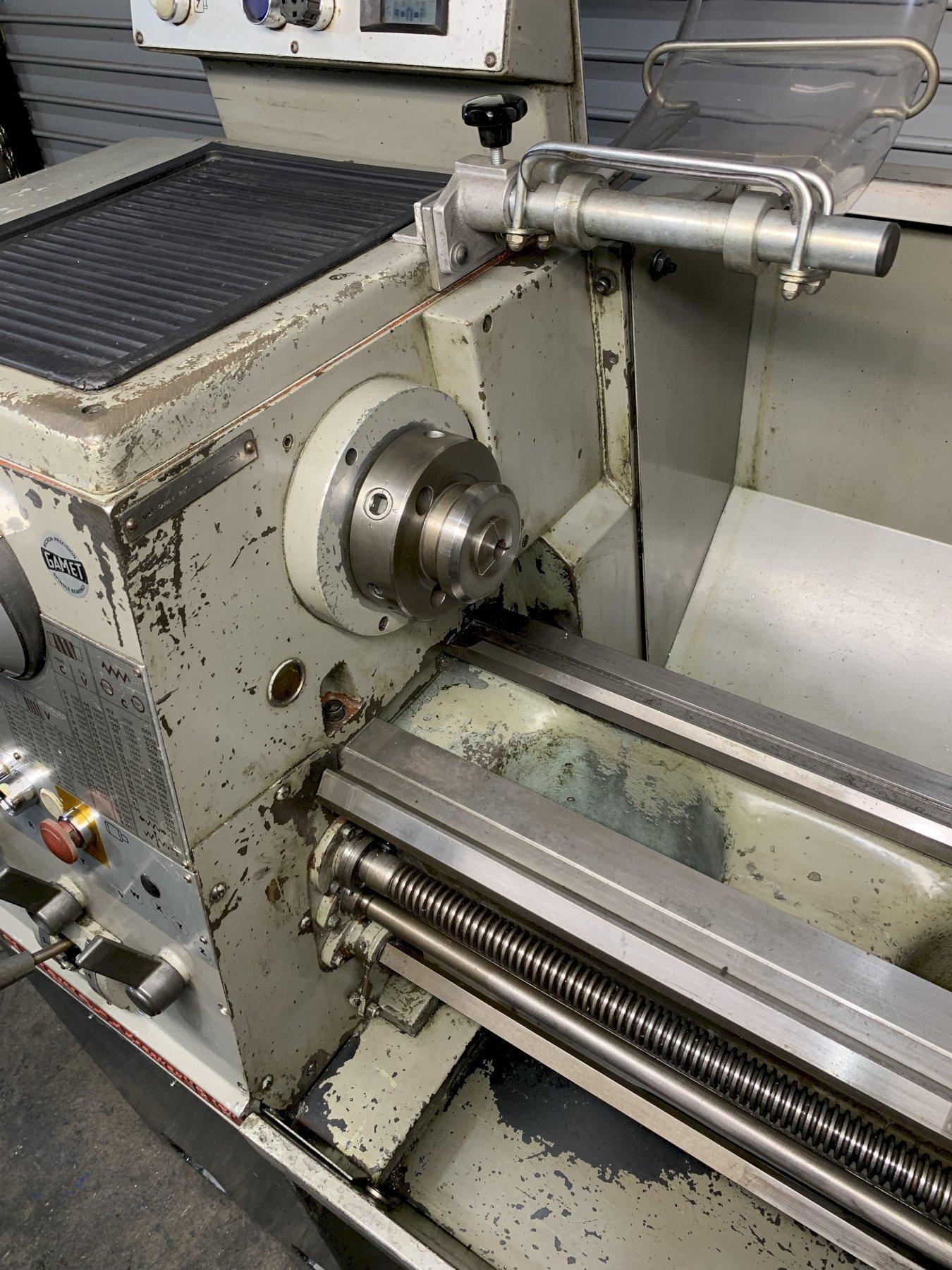

Spindle Nose: 4"-D1 Camlock

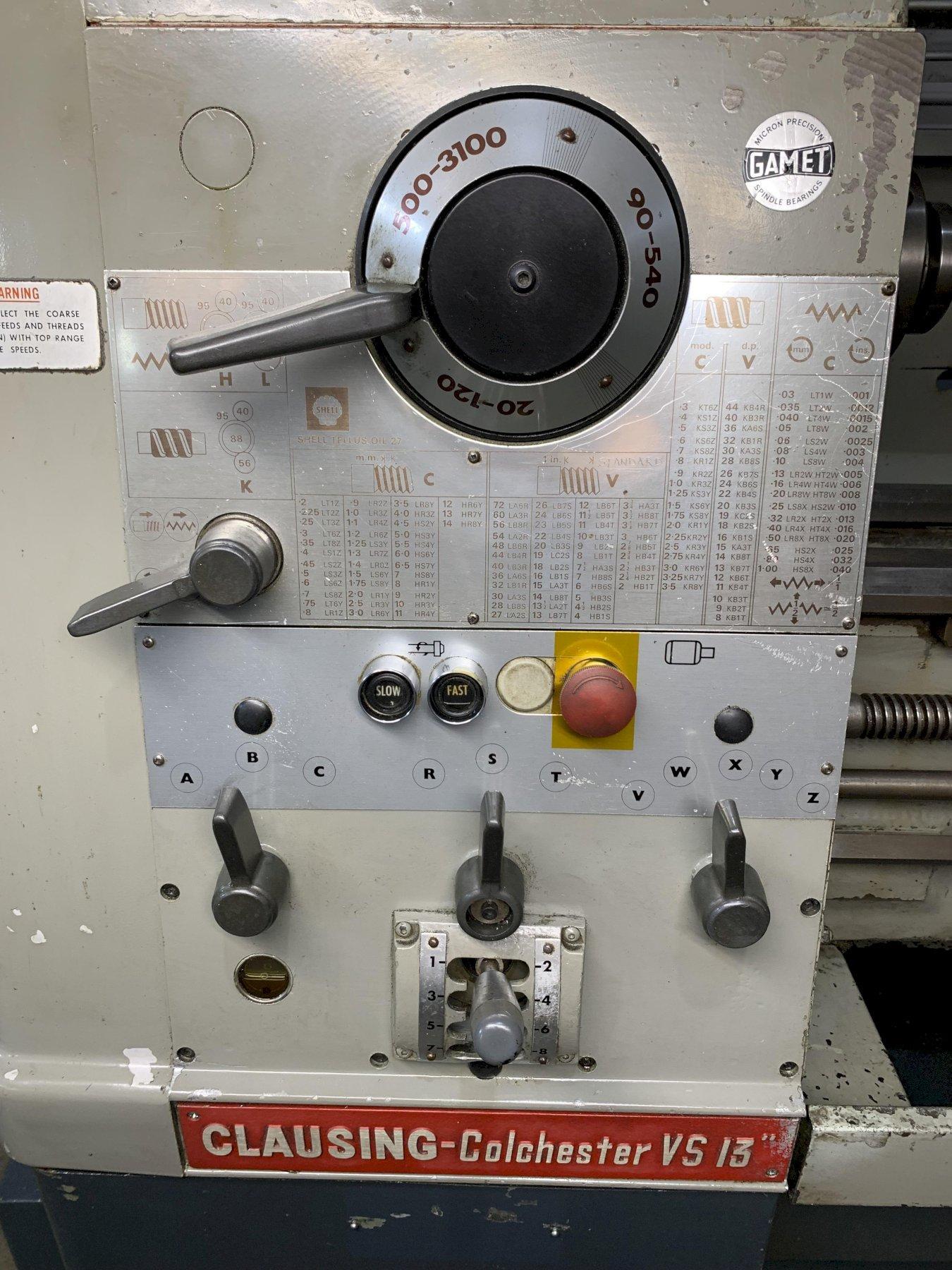

Spindle Speeds: (16) 30 to 2500 RPM
Threads, U.S.: (45) 2 to 72
Threads, Metric: (39) .2 to 14
Longitudinal Feeds: .001" to .040"
Cross Feeds: .0005" to .020"
Lead Screw, Diameter: 1-1/8"-4 Acme

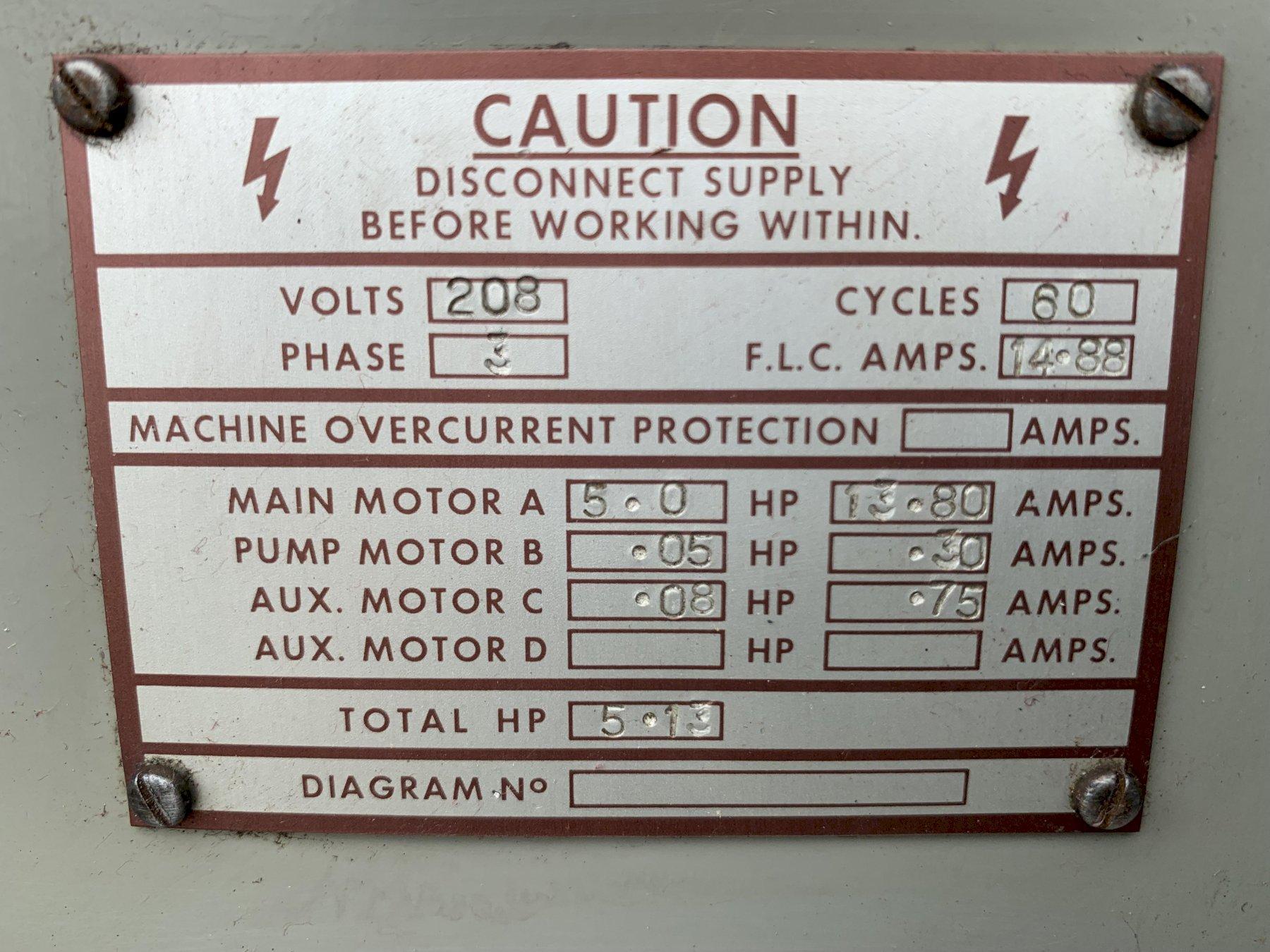

Electrics: 208V, 60 Hz, 3 Phase
Equipped With:
5 HP Drive Motor
6" 3-Jaw Chuck
Collet Chuck

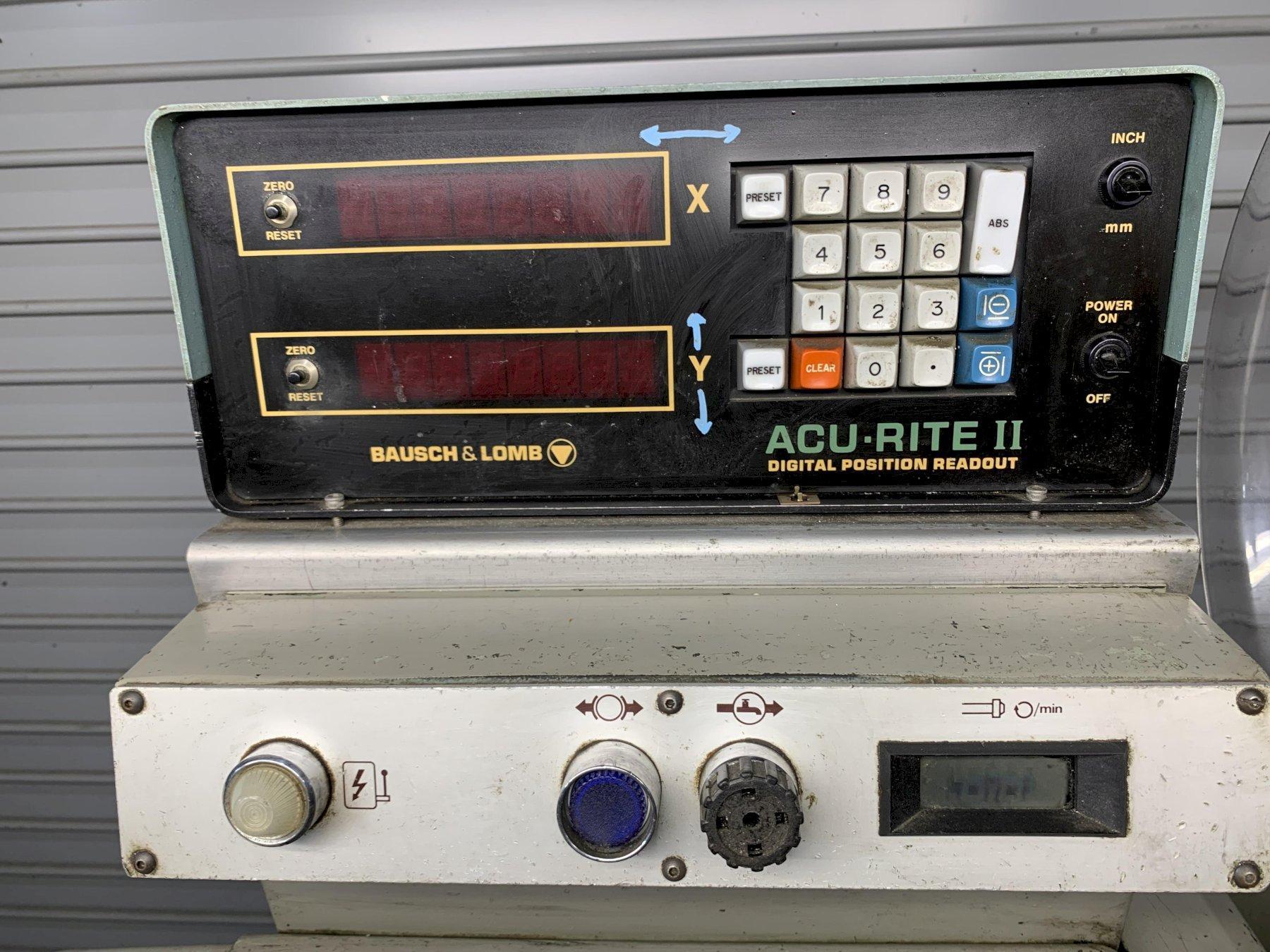

Acurite II Digital Readout

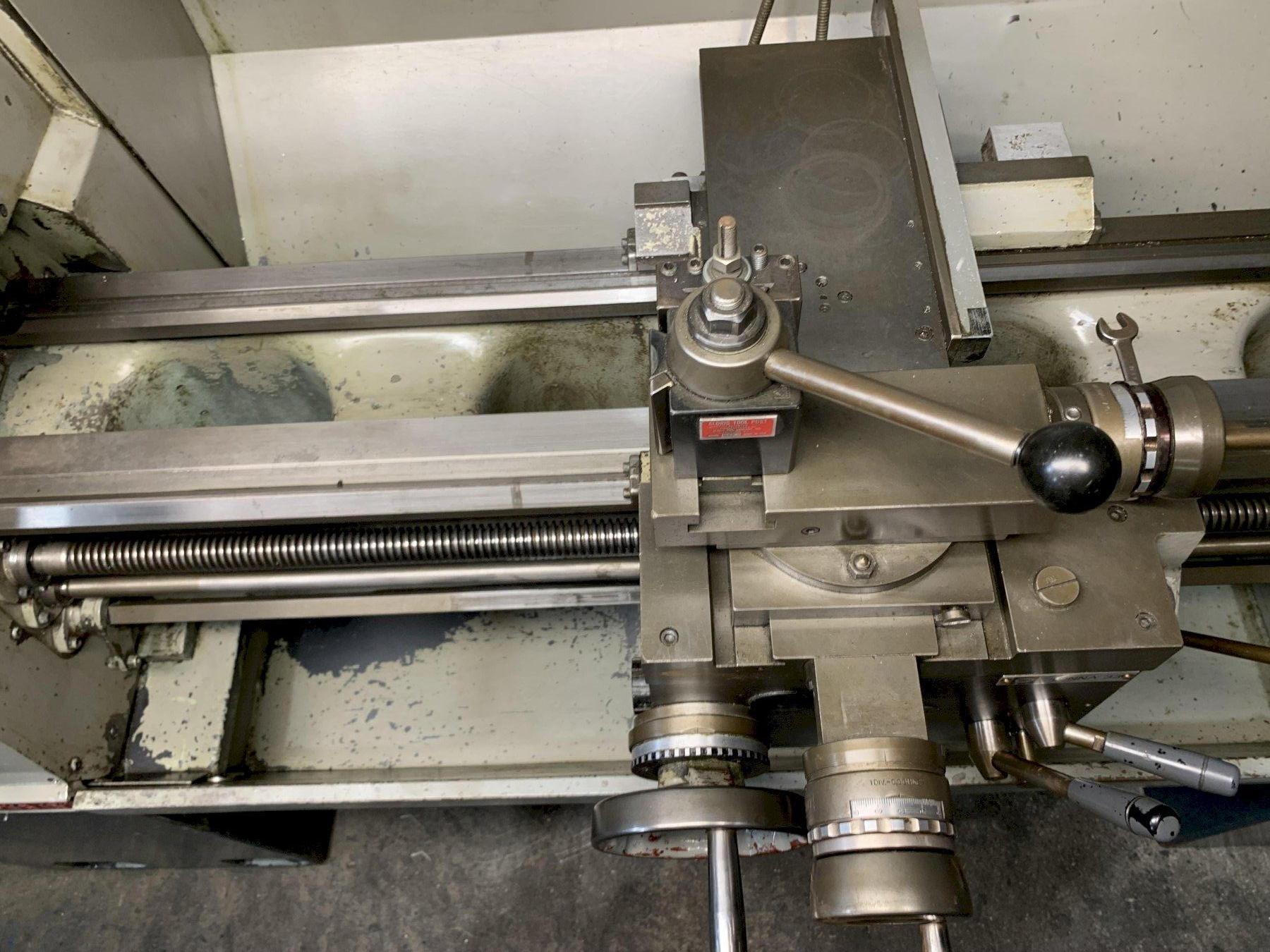

Aloris Tool Post
Graymills Lubricating Pump
2500 lbs. approx.
|
